Strapping Machines

  • MX 045 AUTOMATIC TYING MACHINE

    Description

    • Single Phase 240V 50HZ.
    • Tying Speed >2 seconds/strap.
    • Tying Tension adjustable to 60 kg maximum.
    • Tying size 400mm x 450mm maximum.
    • Tying size 50mm x 90mm minimum.
    • Tying Table depth 230mm.
    • Machine Dimensions 900L x 800W x 1400Hmm.
    • Machine Weight 140 kg.

    Features

    • Extensive applications in printing, plastic commodities, clothes and food industries.
    • Mechanically ties a bow in thread.
    • Uses knotting to connect cutting ends.
    • Specially designed to adjust tension of thread.
    • Uses perfect tension to avoid damage to products.
    • Easy operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

  • MXAM 650 HIGH SPEED AUTOMATIC STRAPPING MACHINE (STEEL ARCH)

    Description

    • Arch size 650W x 400Hmm (standard size)
    • Additional Arch size options available
    • Single Phase 230V/240V, 50/60HZ.
    • Strap Speed, 50+ straps per minute.
    • Strap Tension up to 32 kg (5-9mm).
    • Strap Tension up to 55 kg (12mm).
    • Strap Width 5/6mm or 9/12mm specified.
    • Machine Dimensions 1350L x 580W x 1350Hmm.
    • Machine Weight 180 kg.

    Features

    • Waist high Automatic Strap load-in system for easy start up.
    • Servo Technology providing ultimate reliability.
    • Wide range of electronic tension control.
    • Strap loop ejector to avoid strap jamming.
    • Cost-efficient low energy consumption.
    • Extensive applications.
    • Easy operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

  • MXAM 650Y HIGH SPEED AUTOMATIC SIDE STRAPPING MACHINE (STEEL ARCH)

    Description

    • Arch size 600W x 800Hmm (standard size)
    • Additional Arch size options available
    • Single Phase 230V/240V, 50/60HZ.
    • Strap Speed, 50+ straps per minute.
    • Strap Tension up to 32 kg (5-9mm).
    • Strap Tension up to 55 kg (12mm).
    • Strap Width 5/6mm or 9/12mm specified.
    • Machine Dimensions 1360L x 580W x 1460Hmm.
    • Machine Weight 230 kg.

    Features

    • Waist high Automatic Strap load-in system for easy start up.
    • Servo Technology providing ultimate reliability.
    • Wide range of electronic tension control.
    • Strap loop ejector to avoid strap jamming.
    • Cost-efficient low energy consumption.
    • Extensive applications.
    • Easy operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

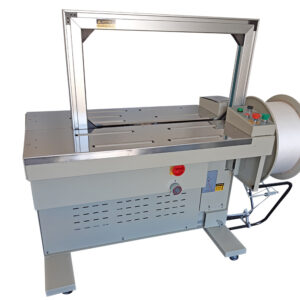

  • MXTP 101 AUTOMATIC STRAPPING MACHINE (STEEL ARCH)

    Description

    • Arch size 850W x 600Hmm (standard size)
    • Single/Three Phase 240V/380V, 50/60HZ.
    • Strap Speed 2.4 seconds/strap.
    • Strap Tension adjustable to 80 kg maximum.
    • Strap Width 9, 12 or 15mm specified.
    • Roller table height 810mm.
    • Machine Dimensions 1400L x 590W x 1500Hmm.
    • Machine Weight 180 kg.

    Features

    • Aluminium patented chute for quieter performance.
    • Programmable patented logic controller for ease of operation.
    • Proximity patented switch ensures accurate switching.
    • Sensor equipped roller allows instant switching.
    • New die cast heater blade eliminates distortion.
    • Low energy standby mode after 60 seconds.
    • Two motors separate start-up – less than 15 amps.
    • Easy operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

  • MXTP 101PB FULLY AUTOMATIC STRAPPING MACHINE (STEEL ARCH)

    Description

    • Arch size 850W x 600Hmm (standard size)
    • Single/Three Phase 240V/380V, 50/60HZ.
    • Strap Speed 2.4 seconds/strap.
    • Strap Tension adjustable to 80 kg maximum.
    • Strap Width 9, 12 or 15mm specified.
    • Conveyor belt feed table height 810mm.
    • Machine Dimensions 1600L x 590W x 1500Hmm.
    • Machine Weight 230 kg.

    Features

    • Aluminium patented chute for quieter performance.
    • Programmable patented logic controller for ease of operation.
    • Proximity patented switch ensures accurate switching.
    • Photoelectric cell provides strapping feeding and control.
    • New die cast heater blade eliminates distortion.
    • Low energy standby mode after 60 seconds.
    • Two motors separate start-up – less than 15 amps.
    • Easy operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

  • MXTP 201 AUTOMATIC SIDE STRAPPING MACHINE (STEEL ARCH)

    Description

    • Arch size 600W x 850Hmm (standard size)
    • Single/Three Phase 240V/380V, 50/60HZ.
    • Strap Speed 2.4 seconds/strap.
    • Strap Tension adjustable to 80 kg maximum.
    • Strap Width 9, 12 or 15mm specified.
    • Machine Dimensions 1400L x 590W x 1740Hmm.

    Features

    • Aluminium patented chute for quieter performance.
    • Programmable patented logic controller for ease of operation.
    • Proximity patented switch ensures accurate switching.
    • Side roller ball activator switch.
    • New die cast heater blade eliminates distortion.
    • Low energy standby mode after 60 seconds.
    • Two motors separate start-up – less than 15 amps.
    • Easy operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

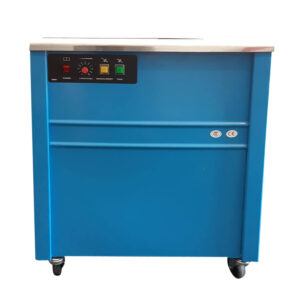

  • MXTP 80 Mini SEMI-AUTOMATIC STRAPPING MACHINE (CLOSED CABINET)

    Description

    • Single Phase 240V, 50HZ with plug.
    • Strap Speed 1.5 seconds/strap.
    • Strap Tension adjustable to 60 kg maximum.
    • Strap Width 9, 12 or 15mm adjustable.
    • Machine Dimensions 660L x 460W x 810Hmm.
    • Machine Weight 80 kg.

    Features

    • Classic high table type style.
    • Instant low voltage 1v heating system.
    • Low energy standby mode after 60 seconds.
    • Extensive applications.
    • Simple operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

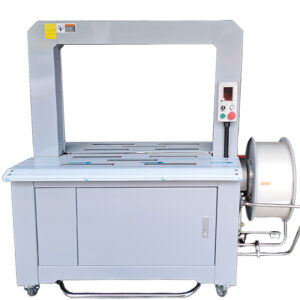

  • MXQ8 Automatic Hi-Speed Strapping Machine

    Description

    SPECIFICATIONS

    • Arch size 840W x 620Hmm (standard size)
    • Single Phase 220V/230V/240V, 50-60HZ.
    • Strap Working Speed – 40 strap/minute
    • Strap Tension adjustable to 60 kg maximum.
    • Strap Width 5, 9, 12 or 15mm specified.
    • Roller table height 750mm.
    • Machine Dimensions 1500L x 640W x 1500Hmm.
    • Machine Weight 140 kg.

    Features

      • Min package dimension 70mm W x 20mm H
      • Max Package dimension 620mm W x 500mm H
      • Auto strap feed from reel dispenser.
      • Electronic display unit.
      • Integrated Tension switch and Encoder
      • Pedal pole cycle activator stepping facility
      • 12-month warranty.
    View ADD TO QUOTE

  • MXTP 90 SEMI-AUTOMATIC STRAPPING MACHINE (CLOSED CABINET)

    Description

    • Single Phase 240V, 50HZ with plug.
    • Strap Speed 1.5 seconds/strap.
    • Strap Tension adjustable to 60 kg maximum.
    • Strap Width 6, 9, 12 or 15mm adjustable.
    • Machine Dimensions 895L x 565W x 730Hmm.
    • Machine Weight 100 kg.

    Features

    • Classic high table type style.
    • Quick smooth electromagnetic clutch.
    • Instant low voltage 1v heating system.
    • Low energy standby mode after 60 seconds.
    • Extensive applications.
    • Easy operation and maintenance.
    • 12 month warranty.
    View ADD TO QUOTE

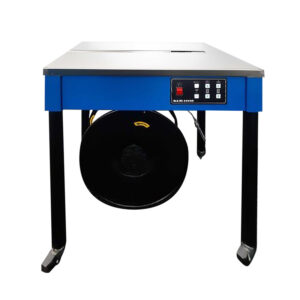

  • MXSAM 1000 SEMI AUTOMATIC STRAPPING MACHINE (OPEN CABINET)

    Description

    DESCRIPTION

    • Power supply: 1-phase 230V 50HZ
    • Power consumption: 4A (300W)
    • Max tension: 60kg
    • PP tape width: 5mm, 6mm, 12mm,& 15mm
    • Min strapping size: W 60mm x H 100mm
    • Max strapping size: unlimited
    • Strapping cycle time 2-3 sec/cycle

    FEATURES

    • Electronic tension
    • Open easy PP strap loading
    • 2 Motors
    • Compact inside structure for easy access.
    • Quality Japanese technology strapper.
    • Easy electronic settings.
    View ADD TO QUOTE

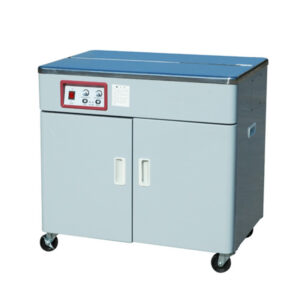

  • MXTD88 SEMI AUTOMATIC STRAPPING MACHINE (CLOSED CABINET)

    Description

    • DESCRIPTION
      • Power supply:220V 50HZ 1-phase/ 110V 60HZ 1Phase
      • Power: 0.66KW
      • Max tension: 60kg
      • PP tape width: 6-15mm
      • Min strapping size: 60mm
      • Max strapping size: Free size
      • Strapping speed: 1.5 second/strap
      • PP strapping core: 200mm



             FEATURES

      • Electronic tension
      • White/beige colour
      • Front door model for easy PP strap loading
      • 2 Motors and loop ejector
      • Compact inside structure for easy access
      • Uses Japanese technology
    View ADD TO QUOTE

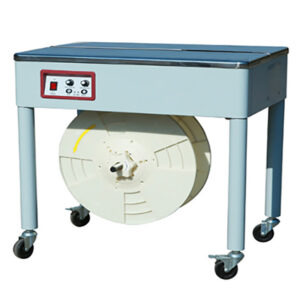

  • MXTD88A SEMI AUTOMATIC STRAPPING MACHINE (OPEN CABINET)

    Description

     DESCRIPTION

    • Power supply:220V 50HZ 1-phase/ 110V 60HZ 1Phase
    • Power: 0.66KW
    • Max tension: 60kg
    • PP tape width: 6-15mm
    • Min strapping size: 60mm
    • Max strapping size: Free size
    • Strapping speed: 1.5 second/strap
    • PP strapping core: 200mm



           FEATURES

      • Electronic tension
      • White/beige colour
      • Open easy PP strap loading
      • 2 Motors and loop ejector
      • Compact inside structure for easy access.
    View ADD TO QUOTE
